Convertible Top Repair & Replacement in Fort Worth: Leaks, Materials, and When to Call a Pro

Driving a convertible in North Texas is a dream in the spring, but by the time the August sun hits Tarrant County, it can become a maintenance nightmare. Between the blistering 100-degree days that bake your seals and the sudden, violent thunderstorms that test every seam, your top lives a hard life. In my years on the shop floor, I’ve seen how the DFW environment—a high-heat, dry climate much like the Nevada desert—acts as a catalyst for material failure.

This guide is designed to help you diagnose your own leaks, understand the polymer science behind your top, and decide if you can tackle the repair yourself or if it’s time to bring it to the professionals.

--------------------------------------------------------------------------------

1. What Fails First on Convertible Tops in North Texas

The primary enemy of any convertible in North Texas is UV radiation and thermal degradation.

• Rubber Shrinkage: Standard rubber seals are prone to significant shrinkage after years of exposure. We frequently see 90s-era Mustangs where the seals have shrunk an inch or more, losing their ability to create the necessary pressure seal against the frame.

• The Polymer "Backbone": Whether your top is P.V.C. (Vinyl) or EPDM (Synthetic Rubber), these materials have a chemical backbone that eventually breaks down under ozone and weathering. When this backbone fails, the material becomes brittle and loses its structural integrity.

• UV Inhibitors and Fading: For the best color retention, I always recommend solution-dyed acrylic (canvas). Because the color is integrated into the fiber itself during the manufacturing process, it is vastly more resistant to the "bleaching" effect of the Texas sun compared to surface-dyed alternatives.

--------------------------------------------------------------------------------

2. Water Leak Diagnosis: A-Pillar and Header Failures

If you see water protruding and running down the inside of your A-pillar, it’s usually a failure of physics, not just a hole in the fabric. Most convertible frames, like the E36 BMW or Fox Body Mustang, use a "lump" and channel system to direct water. When seals lack pressure, water overflows that lump and drips directly into your cabin.

Step 1: Visual Inspection & The "Metal Header" Tip

First, check where the rubber gasket meets the metal header. Master’s Tip: On cars with a metal header holding the front gasket, the rubber often shrinks so much it creates a gap behind the seal. I’ve found that applying an incredibly thick bead of black silicone here can fill that void. To prevent the roof from sticking, coat the opposite side of the seal with a heavy layer of axle grease. Close the top; the silicone will stick to the metal but not the greased rubber, creating a perfect, custom-molded form.

Step 2: The "Tape Test"

To see if your top actually has enough compression, use a roll of tape. Make a small, round loop of tape and place it on the roof where it meets the latches. Close and latch the roof. When you open it, inspect the tape. If it isn't significantly crushed, your top lacks the downward pressure needed to keep water in its designated channels.

Step 3: Hardware and Latch Adjustment

If you fail the tape test, you may need to adjust your "hem joints" or ball studs. This usually involves removing the header panel to access the latching mechanism. Undo the lock nut and turn the joint—I usually start with three full turns. You want a latch that is firm and requires effort to close, but doesn’t require you to "manhandle" it.

Step 4: Weatherstripping Around Windows

Don't ignore the seals around your windows. If these fail, rain runs down the inside of the glass. In the DFW area, this is a leading cause of electrical failure for window motors and interior panel rot.

--------------------------------------------------------------------------------

3. DIY Patching vs. Professional Replacement: The Decision Boundary

The Repair-vs-Replace Checklist:

• Material "Stretch": If your vinyl or fabric is still pliable, specialized adhesives like Sluyter 350 or Primabond Contact Cement can bond a patch effectively. However, if the "backbone" of the PVC has failed and the material feels like cracker-dry crackers, a patch will just tear the surrounding fabric under tension.

• The "Insider" Adhesive: For headliners and heavy-duty vinyl bonding in our heat, I recommend DAP Landau 233 or Fast Tack 92. These are trade-grade, high-heat resistant adhesives specifically formulated for the automotive upholstery trade.

• Structural Integrity: If you’re driving a pre-2005 Mustang, subframe connectors are essential. Without them, the unibody flexes too much, which eventually cracks the convertible frame or causes the top to fit poorly.

• The Staple Rule: If you attempt a DIY replacement, you need aluminum staples (ranging from 1/4" to 3/8") to prevent rust. Be prepared to fire roughly 500 of them.

The DIY Reality Check: This is a multi-person job. It involves fitting fabric over guide rings, stretching out every wrinkle, and ensuring the rear window is perfectly centered. It is rarely a single-day project.

--------------------------------------------------------------------------------

4. Material Selection for the DFW Climate

When choosing materials, we have to look at their chemical resistance and temperature thresholds.

Material Feature

EPDM (Synthetic Rubber)

Silicone (Inorganic Polymer)

P.V.C. (Vinyl)

Acrylic (Canvas)

Max Heat Resistance

Up to 302°F

Up to 482°F

Standard

High (UV Resistant)

Water Resistance

Most Water Resistant

Excellent (if modified)

Excellent

Excellent

Durability Priority

Best for outdoor seals

Best for high-temp gaskets

Cost-effective

Premium, fade-proof

Not Compatible With

Oils & Greases

Acids & Alkalis

Brittle with age

High maintenance

Window Selection:

• Plastic Windows: Cheaper and easier to install, but the Texas sun will eventually turn them yellow and opaque.

• Glass Windows: Provide permanent clarity and a cleaner look, though they require a much more complex installation.

--------------------------------------------------------------------------------

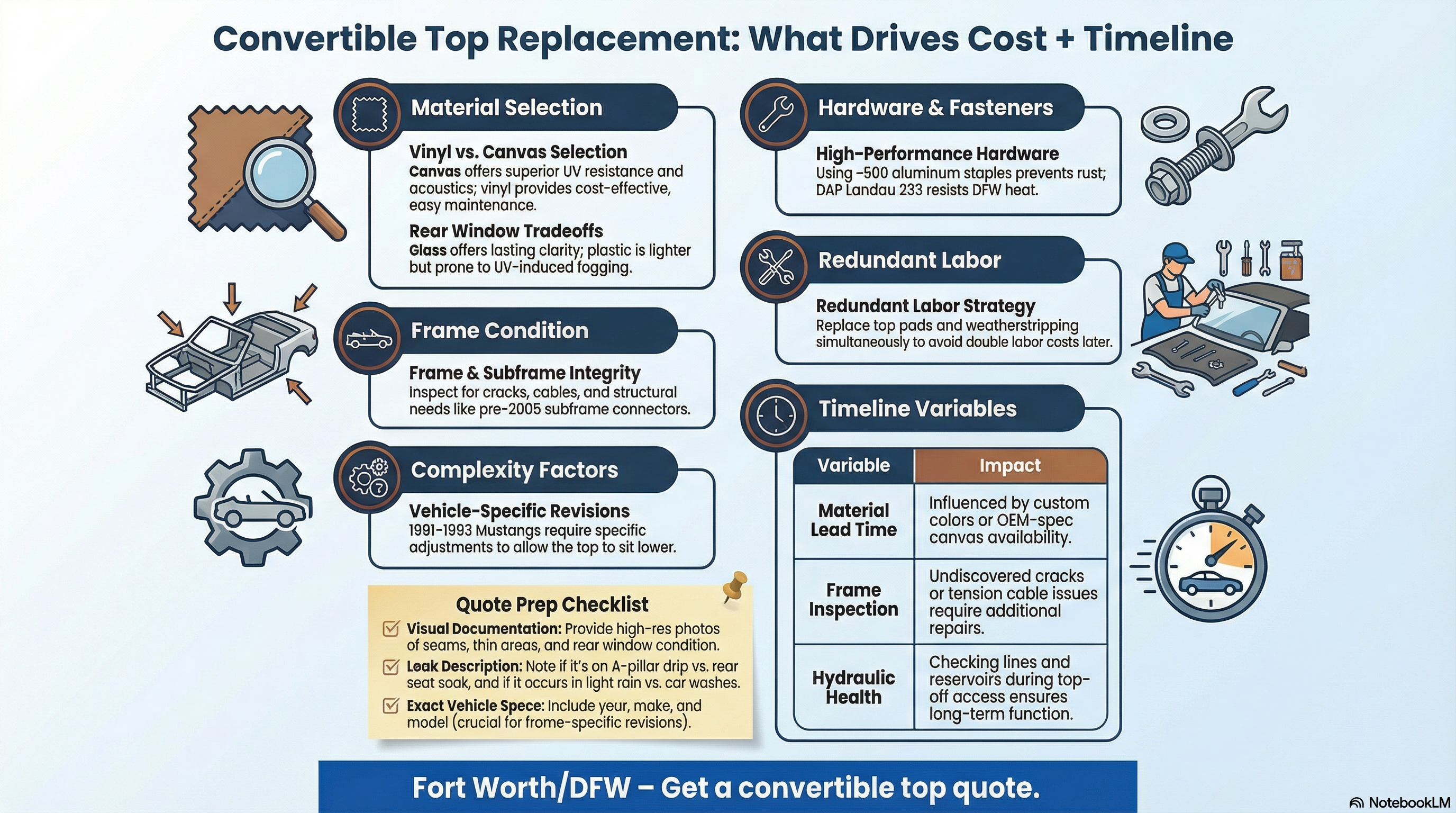

5. Replacement Cost & Timeline Drivers

A professional replacement quote isn't just about the fabric. It’s driven by:

• Frame Condition: We have to inspect for cracks or tension issues. For 1991–1993 Mustangs, be aware that the frames were revised to sit lower when retracted, which changes the parts and labor required.

• Redundant Labor: I always advise customers to replace top pads and weatherstripping at the same time as the top. Replacing them six months later means paying the labor to "peel back" the top all over again.

• Hydraulics: We check lines and the reservoir (usually behind the back seat) for leaks. Using the wrong fluid can ruin the pump; always check if your model requires ATF or standard hydraulic fluid.

--------------------------------------------------------------------------------

6. Maintenance & Storage Tips for Texas Convertibles

Consistent conditioning is the only way to beat the DFW heat.

• Cleaning: Use a concentrated cleaner like Super-Tuff.

  • For Degreasing: Dilute 4:1 with water.

  • For General Cleaning: Dilute 20:1 with water.

  • For Stains: Use a solvent-based dry cleaner like Spot Off.

• Conditioning: Use 303 Vinyl Conditioner. It is water-based and contains no silicone, which is vital because silicone-based conditioners can actually destroy the plasticizers in your vinyl over time.

• Sealing: For seams and high-wear points, apply Aqua Tite Top Gun Sealer to maintain a watertight barrier.

--------------------------------------------------------------------------------

7. Frequently Asked Questions (FAQ)

1. Can I use regular silicone on my seals? Only if you use the "axle grease" trick mentioned in the diagnostic section. Otherwise, the silicone will bond your top shut, or worse, tear your seals the next time you try to drop the top.

2. Why is my top fading? UV exposure is the culprit. Solution-dyed acrylic (Canvas) is the only way to ensure the color stays dark through several Texas summers.

3. What is EPDM? It’s a synthetic rubber that is the "king" of water resistance for outdoor use. It’s used for your weather seals because it resists ozone and bonds well to metal.

4. Are subframe connectors really necessary? For pre-2005 convertibles, absolutely. They stop the car from twisting, which protects your top’s frame from cracking.

5. How many staples does a top replacement take? Plan on using about 500 aluminum staples to ensure a tight, rust-free fit.

6. Vinyl or Canvas for DFW heat? Canvas (Acrylic) is the premium choice for our climate due to its superior UV resistance and ability to stay cool to the touch.

--------------------------------------------------------------------------------

8. Local Assessment Preparation

Ready for a professional look? Prepare this checklist before calling:

• High-Resolution Photos: Focus on the seams, any thinning areas, and the state of your rear window.

• Leak Description: Note if it’s a "drip at the A-pillar" or a "soak at the rear seat," and if it happens in light rain or only at the car wash.

• Vehicle Specs: Provide the Year, Make, and Model. Remember, those 1991–1993 Mustangs have specific frame requirements.

Contact My Upholstery Guys today for a professional convertible top assessment in the Fort Worth/DFW area.
