Introduction: The North Texas Environment and Your Saddle
In the Dallas-Fort Worth Metroplex, a motorcycle saddle is subjected to a "weathering cycle" that ranks among the most punishing in North America. The combination of triple-digit summer heat, high UV indices, and sudden, torrential rain causes factory materials to fail prematurely. Prolonged exposure to this environment causes vinyl to dry out and turn brittle, eventually leading to surface cracking that allows moisture to reach the internal foam core (Luimoto; CarInterior). For riders of heavyweight cruisers like Harley-Davidson, Indian, and the Honda Gold Wing, maintaining the structural and mechanical integrity of the seat is a requirement for long-distance safety and ergonomic support.
What Fails First on Motorcycle Seats in North Texas
The primary failure points for DFW riders are surface brittleness, foam saturation, and internal hardware corrosion. Once UV damage compromises the vinyl, the seat begins "soaking up trouble" (Luimoto). This moisture ingress leads to:
Foam Breakdown: Water makes foam soggy and spongy, resulting in a loss of density and the formation of ergonomic lumps (Luimoto).
Biological Growth: Trapped moisture creates a breeding ground for mold and mildew, leading to persistent odors and material rot (Luimoto).
Mechanical Degradation: Water reaching the base causes internal rust on metal frames and brackets. On modern touring bikes, moisture can short-circuit integrated seat heaters and weight sensors (Luimoto).

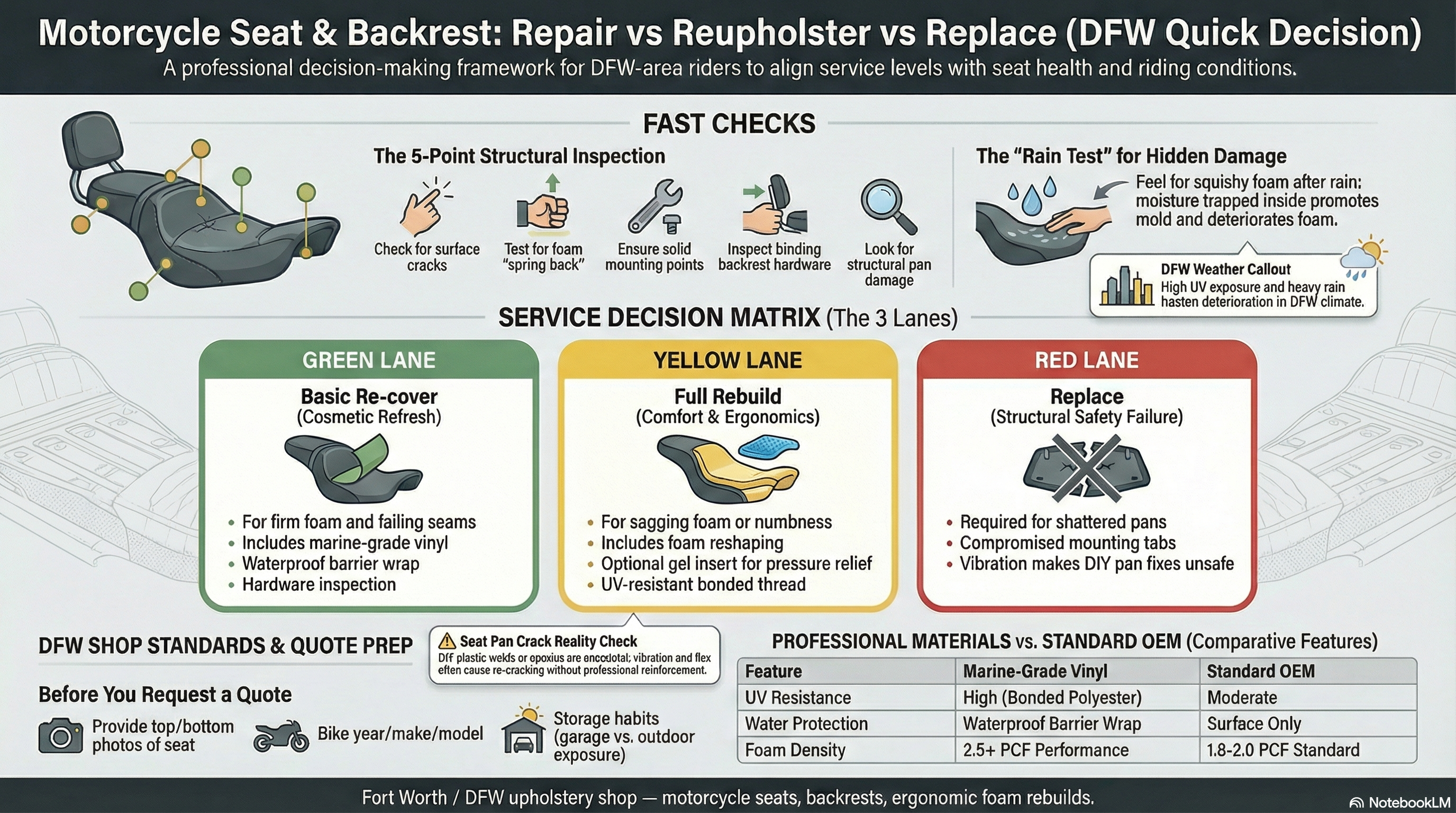

Repair vs. Reupholstery vs. Replace: The Decision Guide
Riders should use the "Press Test" to evaluate foam density—if the foam fails to spring back or has visible sagging, the internal structure is compromised (CarInterior).
Green (Basic Re-cover): For firm foam with only surface cracks. A standard re-cover costs between $150 and $400 (CarInterior). A professional rebuild here should include Cushion Wrap Silk Film (Sailrite) to provide a moisture barrier between the foam and the new cover.
Yellow (Full Rebuild): For riders experiencing numbness after 60 minutes of saddle time. This involves reshaping the foam and potentially adding gel inserts (45–80) to reduce tailbone pressure (CarInterior).
Red (Replace): If the mounting hardware is damaged or the structural seat pan is shattered, replacement is safer than repair (CarInterior).
Seat Pan Cracks: What’s Fixable and What Isn’t
The seat pan is the structural foundation of the saddle. A common failure is the "nose tab" stress crack, often found near mounting rivets (Harley Davidson Forums).
According to rider-reported anecdotal methods, some attempt repairs using:
Plastic Welding or 3M Plastic Fillers: Applied after burnishing the plastic to ensure proper adhesion (Harley Davidson Forums).
Metal Plate Reinforcement: Forming a metal plate to the pan's contour and securing it with pop-rivets (Harley Davidson Forums).
JB Weld: Used for minor cracks where no significant flex is expected.
As a consultant, I must emphasize that these are anecdotal fixes. Because seat pans are subject to constant vibration and flex, glues often fail without heavy structural reinforcement. If a mounting point is compromised, the pan is generally non-repairable.
Upholstery Thread: Type, Size, and Stretch Control
In the North Texas heat, the thread is the most common point of seam failure. Selecting the correct fiber is critical for durability.
Bonded Polyester vs. Bonded Nylon: While both have high strength, Bonded Polyester (Sunguard) is the standard for DFW because it is UV-treated. Furthermore, Polyester offers "excellent stretch control," whereas Nylon provides "stretch and flexibility" (Albright’s Supply). For heavyweight cruiser seats, stretch control is preferred to prevent seams from elongating under the rider's weight.
Tex Sizing: We use the Tex system for technical precision. Tex 70 is standard for light automotive work, but for heavy-duty cruiser saddles, we use Tex 90 (B92) or Tex 135 (B138) for superior strength and visible top-stitching (Albright’s Supply).
Embroidery Thread: Standard embroidery thread (C&C Motorcycle Seats) is not UV protected and will fade. It must be treated with Scotch Guard to extend its color life.
Vinyl Stretch Profiles: Avoiding Wrinkles
The "fit" of a seat depends on how the vinyl handles the complex contours of a cruiser pan (Sailrite).
360-Degree (Allsport): Equal stretch on the warp, weft, and bias. This is the gold standard for high-performance motorcycle seating with deep tapers (Sailrite).
Four-Way (EverSoft/Bayside): Provides a balance of flexibility and structure; good for corners but maintains a leather-like grain (Sailrite).
Two-Way (Construction): Only for flat box cushions. Using this on a contoured cruiser seat will result in sagging because it cannot be tensioned properly (Sailrite).
The Truth About Leather vs. Vinyl in Texas
Marine-grade vinyl is highly weather-resistant and requires lower maintenance. If choosing leather, only automotive-grade hides should be used. Leather is a skin that requires cleaning and conditioning every 3–6 months to prevent it from drying out in the DFW heat (The Lucky Needle).
From a cost perspective, leather is significantly more expensive because it is sold by the hide (typically 50–60 sq. ft.). Because of natural imperfections like scars and brands, there is a high percentage of waste when cutting a seat pattern, which increases the material cost by 150–300 over vinyl (The Lucky Needle; CarInterior). For high-mileage DFW touring, riders should prioritize a high "double rub count"—an industry measure of abrasion resistance (Albright's Supply).
Mechanical Integrity: Gold Wing and Touring Backrests
Backrest upholstery is more than just fabric; it involves mechanical maintenance of the mounting hardware. During a professional rebuild, the following components must be inspected (Kuryakyn):
Mounting Bracket and T-Nuts: We utilize 1/4-20 T-Nuts and socket head cap screws to secure the bracket to the seat pan.
Spring Plunger: This allows for height adjustment. A common technical error is over-tightening the Spring Plunger, which causes the backrest to bind and prevents smooth movement.
Seat Hole Plug: This component must be properly seated to protect the internal bracketry from the elements.
Cost and Timeline Drivers
Standard re-covers in the US market range from $275 to $650, while full custom builds can exceed $1,000 (CarInterior).
Custom Embroidery: Simple skull outlines start at $35, while custom backrest embroidery can reach $125 (C&C Motorcycle Seats).
Add-ons: Gel pads (45–80) and heated elements (299–525) increase the labor complexity (CarInterior).
Timeline: During peak riding season, expect lead times of 3 to 6 weeks.
Quote-Prep Checklist
Detailed Photos: Provide clear shots of the top, the bottom pan, and all mounting hardware.
Bike Specifications: Year, make, model, and seat type (Solo vs. Touring).
Storage and Usage: Specify if the bike is garage-kept and your average daily mileage.
Frequently Asked Questions (FAQ)
Is it cheaper to reupholster or buy new? Reupholstery (starting at $275) is the best value for custom ergonomics and better foam density. However, if your seat pan is broken, buying a new OEM seat (typically 300–700) is the more practical choice (CarInterior).
How long does a professional job last? A seat built with UV-treated polyester and marine-grade vinyl should last 5–8 years. In high-UV environments like North Texas, vinyl generally outlasts leather (CarInterior; Luimoto).
Why is my seat squishy after rain? This indicates the foam has "soaked up trouble." Water has bypassed the cover and is now trapped in the foam core, which will lead to mold and internal rust if not addressed (Luimoto).
Should I sit on my custom embroidery? It is not recommended. The friction from your riding gear will cause the threading to fray over time (C&C Motorcycle Seats).
Can I add heat later? Yes, heated elements (299–525) can be integrated during the rebuild, provided the shop has experience with electrical routing (CarInterior).
What is the best all-weather material? Marine-grade vinyl. It offers superior water resistance and UV protection compared to standard textiles or leather (Luimoto).
